2nd Transformation Options

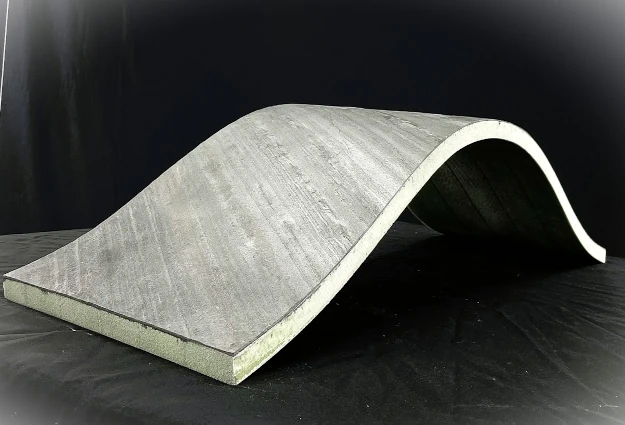

Curved Panels

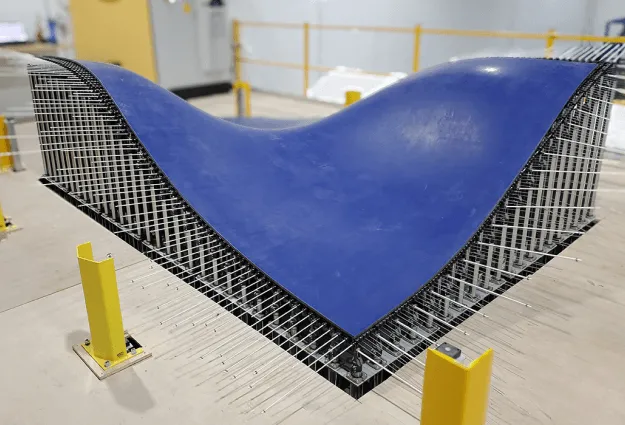

Lignum Veneers offers its wood and stone veneers on single and double curved panels. Curved or organic surfaces combining fiberglass, resins, and structural foams made from recycled bottles make these products lightweight and eco-friendly. Patented and unique equipment uses your engineering drawings and mechanically adapts to reproduce single and double curved shapes without requiring mold fabrication, enabling rapid and cost-effective unit production.
Components :
- Top layer: Wood or Stone veneer on GFRP
- Core: Recycled Polyethylene terephthalate (PET)
- Back layer: Glass Fiber Reinforced Plastic (GFRP)
- Fire retardant core also available
- Finish: Bare or prefinish
Dimensions :
- Minimum: 610mm x 610mm (24’’x24’’)
- Maximum: 2440mm x 1220mm (96’’x48’’)
Thickness :
- Minimum: 10mm (3/8’’)
- Maximum: 40mm (1½’’)
- Tolerance: +- 0.8mm (1/32’’)
Weight (16mm thick panel) :
- Wood top layer panel: 3.9kg/m² (0.8 lbs/sf)
- Stone top layer panel: 6.0kg/m² (1.2 lbs/sf)

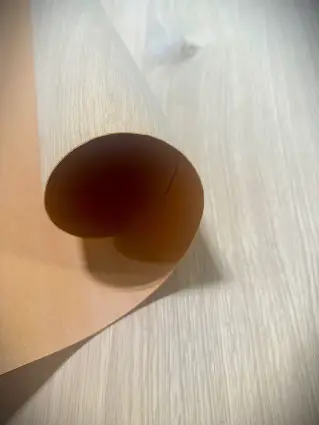

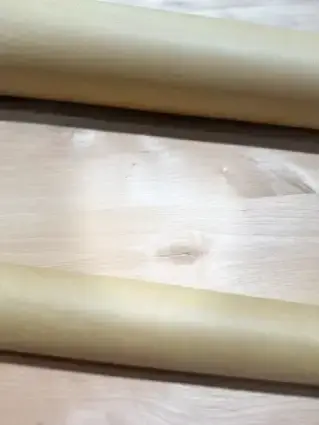

Flexible Veneer on Paper or Wood
Lignum Veneers offers its wood veneers in a flexible version! Our veneers can be bonded in two plies on kraft paper or another wood veneer. Then, through a mechanical process, the fiber is released, resulting in a very stable and strong sheet while remaining flexible. This allows the veneer to be used in workshops to fit more complex shapes or directly on installation sites. Flexible wood veneer combines flexibility and authenticity, offering creative freedom without compromising the elegance of natural wood.
Components :
- Top layer: Wood veneer
- Inner ply (only for 3 plies sheets): Kraft paper with wood back layer
- Back layer: Wood veneer or kraft paper
- Color options available for kraft paper
Dimensions :
- Minimum: Any
- Maximum: 3660mm x 1525mm (144’’x60’’)
Thickness :
- Wood veneer: 0.5mm (1/50’’)
- Kraft paper: 0.25mm (1/100’’)
Curving radius :
- Up to 50mm (2’’)
